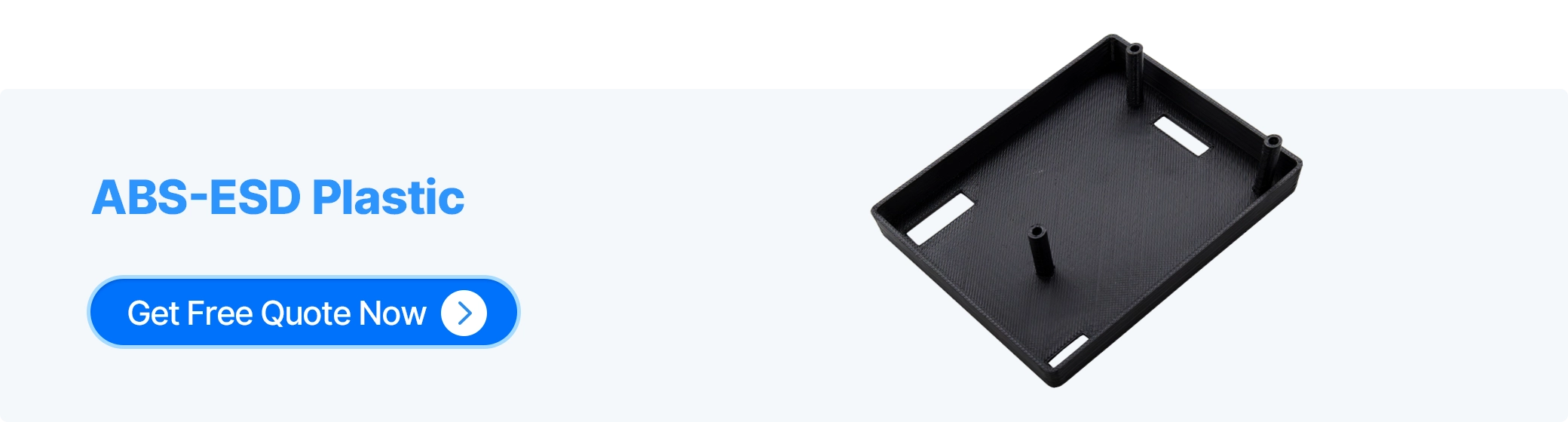

ABS-ESD Plastic
Last updated on Jun 05, 2026
Characteristics of ABS-ESD Plastic
Price: From $3.00
Technology: FDM (Fused Deposition Modeling)
Build Time: From 72h (May vary for big size parts or high volume orders )
Color: Black
Tolerance: ±0.3mm (Within 100mm) or ±0.4% (Above 100mm)
Recommended Wall Thickness: > 1.6mm
Max Build Size: 580mm x 480mm x 480mm
Minimum Build Size: 30mm x 30mm x 10mm
Advantages: Permanent antistatic properties, good strength, high toughness, excellent dimensional stability.
Features: Textured surface, relatively rough appearance. Not suitable for placement in high-temperature environments or under strong sunlight.
Applications: Suitable for component manufacturing in industries focused on electrostatic-sensitive fields, including electronics & semiconductors, drones, aerospace, automotive electronics, automation equipment, etc.
Mechanical Properties of ABS-ESD Plastic
| Measurement | Test Method | Value |
| Tensile strength, XY | ISO 527, 10mm/min | 38 MPa |
| Tensile strength, Z | ISO 527, 10mm/min | 16 MPa |
| Flexural strength, XY | ISO 178 | 55 MPa |
| Flexural strength, Z | ISO 178 | 18 MPa |
| Flexural modulus, XY | ISO 178 | 2500 MPa |
| Flexural modulus, Z | ISO 178 | 2000 MPa |
| Elongation at break, XY | ISO 527, 10mm/min | 3.90% |
| Elongation at break, Z | ISO 527, 10mm/min | 1.50% |
| Izod Impact Strength (unnotched), XY | ISO 179, Unnotched | 8.4 KJ/m² |
| Izod Impact Strength (unnotched), Z | ISO 179, Unnotched | 1.4 KJ/m² |
Physical& Mechanical Properties
