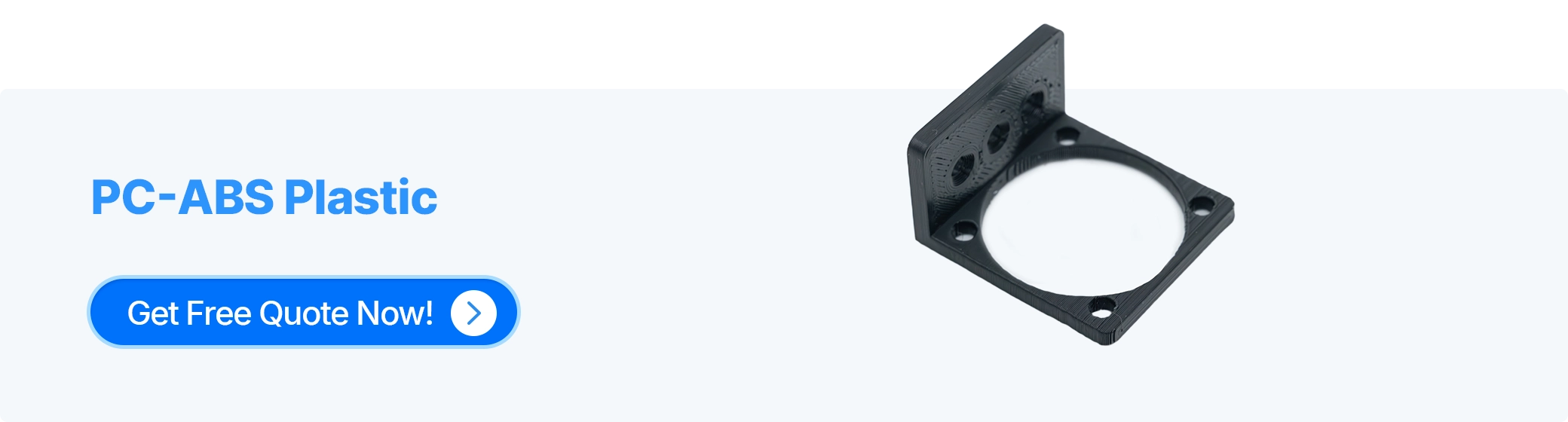

PC-ABS Plastic

PC-ABS Plastic is an engineering thermoplastic blend that combines the toughness and heat resistance of polycarbonate (PC) with the processability and impact resistance of ABS. This PC-ABS material is available for FDM 3D printing and is suitable for functional parts, automotive components, electronic housings, and industrial applications.

PC-ABS Characteristics

Price: From $3

Technology: FDM (Fused Deposition Modeling)

Build Time: From 72h (May vary for big size parts or high-volume orders)

Color: Black

Tolerance: ±0.3mm (Within 100mm) or ±0.4% (Above 100mm)

Recommended Wall Thickness: > 1.6mm

Max Build Size: 580mm×480mm×480mm

Minimum build size: 30mm x 30mm x 10mm

Heat Deflection Temperature: 106℃ (ISO 75, 1.8 MPa)

Advantages: High toughness, good impact resistance, excellent dimensional stability.

Features: Moderate chemical resistance, slightly textured surface.

Applications: Suitable for consumer‑electronic appearances, industrial master molds, automotive interior & exterior trim parts, functional components, etc.

PC-ABS Mechanical Properties

Measurement	Test Method	Value
Tensile Strength	ISO 527	42.7 MPa
Tensile Modulus	ISO 527	2100 MPa
Flexural Strength	ISO 178	76.5 MPa
Flexural Modulus	ISO 178	2055 MPa
Elongation at Break	ISO 527	4.70%
Izod Impact (Notched)	ISO 179	16.2 kJ/㎡
Heat Deflection Temperature	ISO 75 1.8 MPa	106 ℃
Glass Transition Temperature	DSC, 10°C /min	109 ℃
