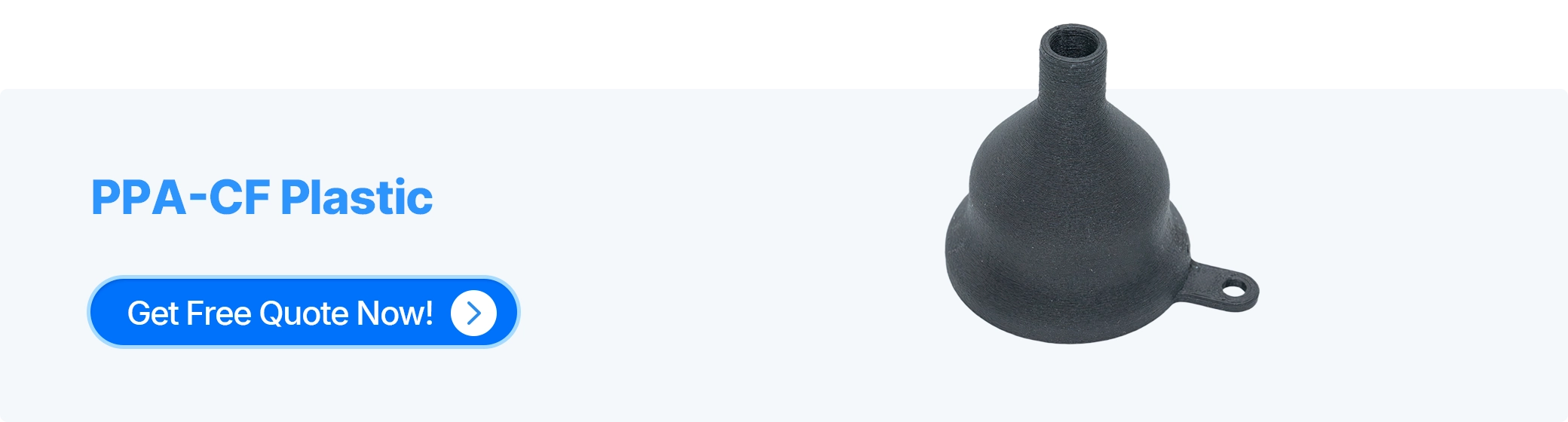

PPA-CF Plastic

PPA-CF is a carbon fiber reinforced nylon material for FDM 3D printing, combining high strength, low moisture absorption, wear resistance, and excellent dimensional stability. It is suitable for lightweight structural parts, industrial components, brackets, fixtures, and functional prototypes.

PPA-CF Plastic Characteristics

Price: From $3

Technology: FDM (Fused Deposition Modeling)

Build Time: From 72h (May vary for big size parts or high-volume orders)

Color: Black

Tolerance: ±0.3mm (Within 100mm) or ±0.4% (Above 100mm)

Recommended Wall Thickness: > 1.6mm

Max Build Size: 580mm×480mm×480mm

Minimum build size: 30mm x 30mm x 10mm

Heat Deflection Temperature: 84℃ (ISO 75, 0.45 MPa)

Advantages: Carbon‑fiber reinforced nylon, low moisture absorption, high strength, excellent wear resistance, and good dimensional stability.

Features: Moderate toughness, slightly textured surface.

Applications: Suitable for lightweight structural parts, frame structures, industrial components and assemblies, brackets and fixtures, sports equipment parts, and functional prototypes.

PPA-CF Mechanical Properties

Measurement	Test Method	Value
Tensile Strength (X-Y)	ISO 527	81.7 MPa
Tensile Strength (Z)	ISO 527	30.2 MPa
Tensile Modulus (X-Y)	ISO 527	6945 MPa
Tensile Modulus (Z)	ISO 527	2977 MPa
Flexural Strength (X-Y)	ISO 178	167.5 MPa
Flexural Modulus (X-Y)	ISO 178	6261 MPa
Elongation at Break (X-Y)	ISO 527	2%
Elongation at Break (Z)	ISO 527	1.30%
Izod Impact (Notched)	ISO 179	20.1 KJ/㎡
Heat Deflection Temperature	ISO 75: Method A, 0.45 MPa	84℃
Water Absorption	ISO 62: Method 1	1.37%
